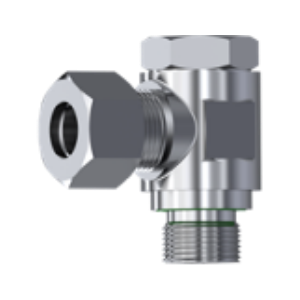

Döner Dirsek - SS
Parametreler
| Boru Ölçüsü | ∅6L ~ ∅42L / ∅6S ~ 38S |
| Maks. Basınç | 100 ~ 630 bar |
| Sıcaklık Aralığı | -60 ~ 400℃ (DIN 17440) |
| Standart | DIN 2353 / ISO 8434-1 |
Stok Kodu | Malzeme Kodu | Boru Ölçüsü | Diş Ölçüsü |
TSSDDR1 | SS WH 6L R 1/8-316 | 6L | 1/8” BSP |
TSSDDR2 | SS WH 8L R 1/4-316 | 8L | 1/4” BSP |
TSSDDR3 | SS WH 10L R 1/4-316 | 10L | 1/4” BSP |
TSSDDR4 | SS WH12 L R 3/8-316 | 12L | 3/8” BSP |
TSSDDR5 | SS WH 15L R 1/2-316 | 15L | 1/2” BSP |
TSSDDR6 | SS WH 18L R 1/2-316 | 18L | 1/2” BSP |
TSSDDR7 | SS WH 22L R 3/4-316 | 22L | 3/4” BSP |
TSSDDR8 | SS WH 28L R 1-316 | 28L | 1” BSP |
TSSDDR9 | SS WH 35L R 1 1/4-316 | 35L | 1”1/4 BSP |
TSSDDR10 | SS WH 42L R 1 1/2-316 | 42L | 1”1/2 BSP |
TSSDDR11 | SS WH 6S R 1/4-316 | 6S | 1/4” BSP |
TSSDDR12 | SS WH 8S R 1/4-316 | 8S | 1/4” BSP |
TSSDDR13 | SS WH 10S R 3/8-316 | 10S | 3/8” BSP |
TSSDDR14 | SS WH 12S R 3/8-316 | 12S | 3/8” BSP |
TSSDDR15 | SS WH 14S R 1/2-316 | 14S | 1/2” BSP |
TSSDDR16 | SS WH 16S R 1/2-316 | 16S | 1/2” BSP |
TSSDDR17 | SS WH 20S R 3/4-316 | 20S | 3/4” BSP |
TSSDDR18 | SS WH 25S R 1-316 | 25S | 1” BSP |
TSSDDR19 | SS WH 30S R 1 1/4-316 | 30S | 1”1/4 BSP |
TSSDDR20 | SS WH 38S R 1 1/2-316 | 38S | 1”1/2 BSP |
